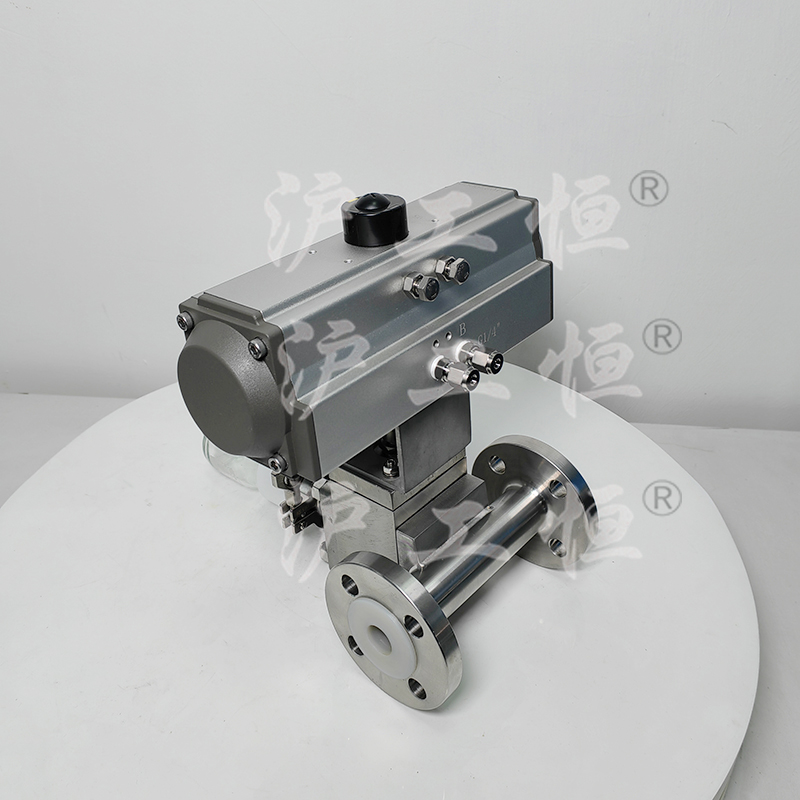

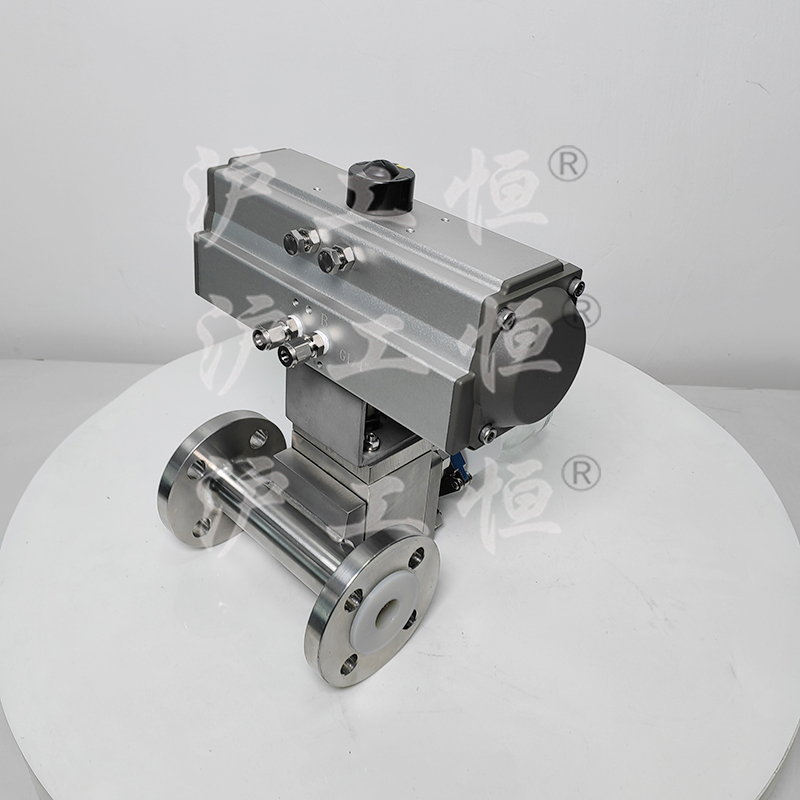

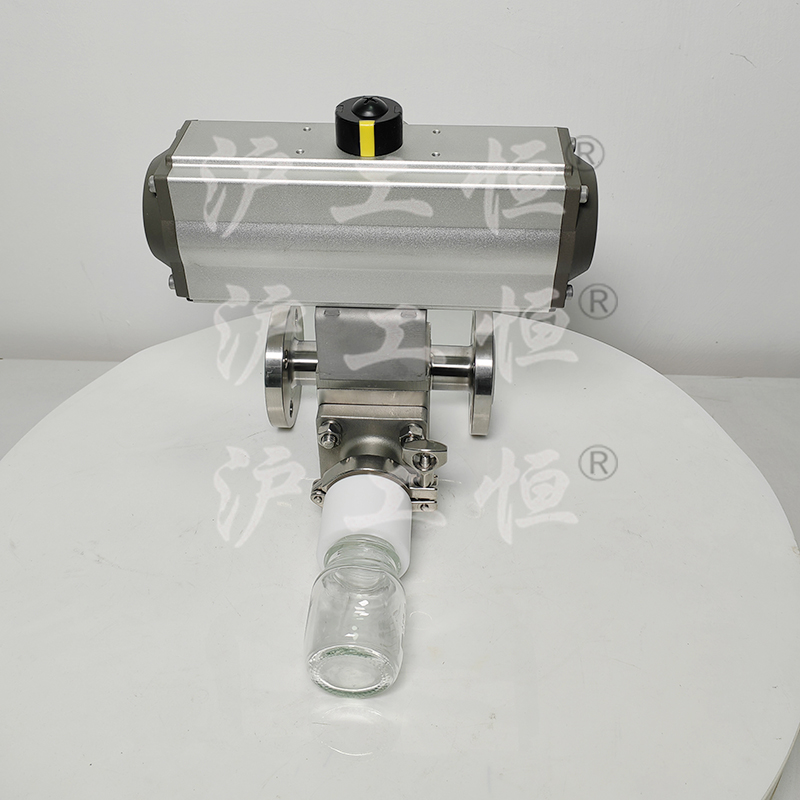

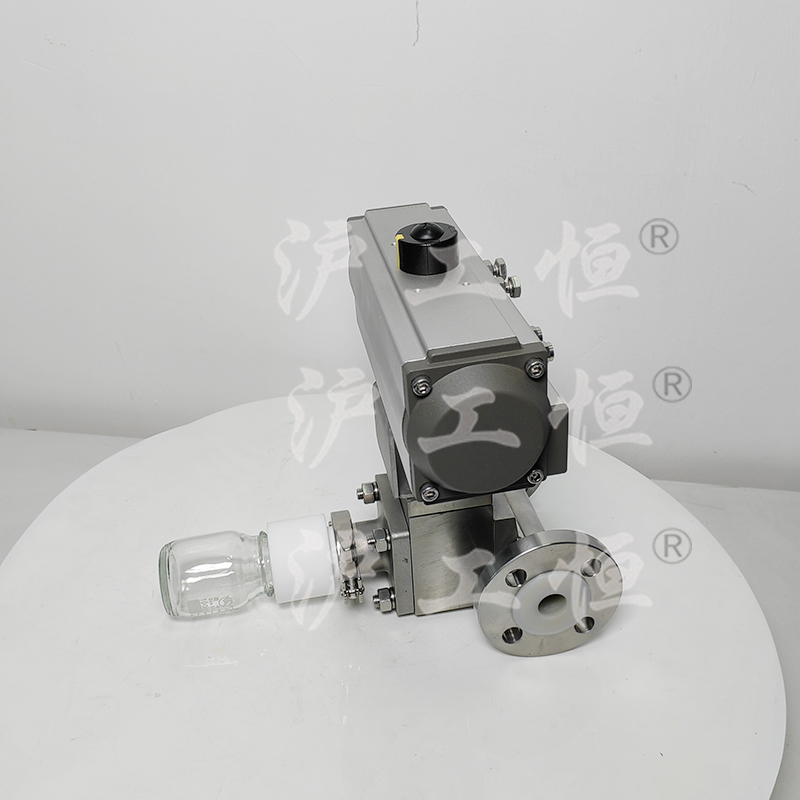

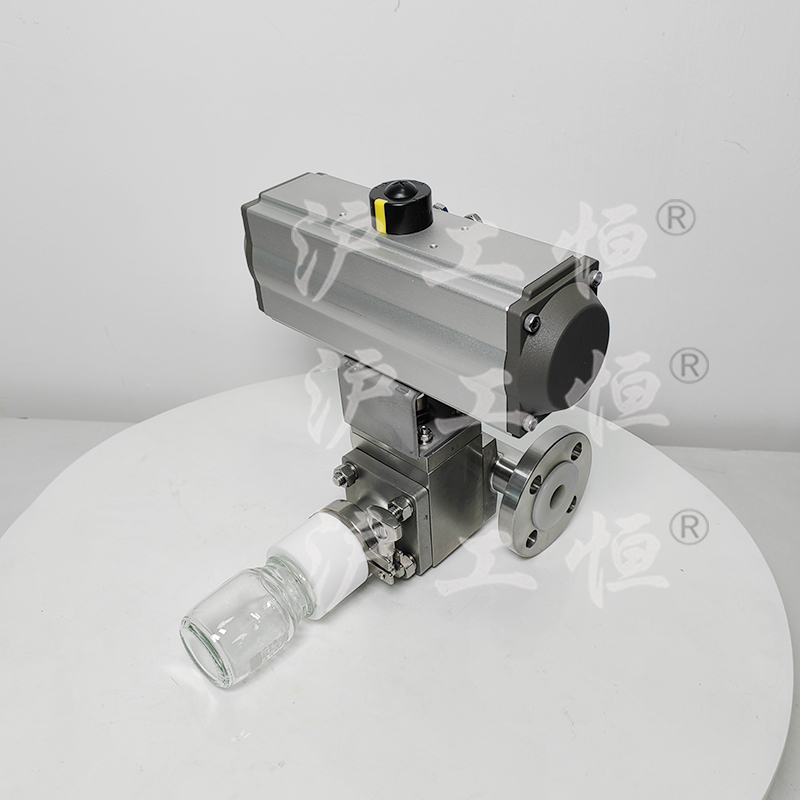

GHQZXQYF46-16RL气动衬氟定量取样阀
类别:取样阀日期:2024-07-15
GHQZXQYF46-16RL气动衬氟定量取样阀采用全衬氟设计,可以在腐蚀性工况的取样,解决特材造价高的问题,GHQZXQYF46-16RL气动衬氟定量取样阀主要有衬氟阀体、衬氟阀芯、衬氟阀杆、阀座、气动执行机构、取样瓶组成,取样瓶为可拆卸设计,试样进入取样瓶内,可将取样瓶密封,避免污染试样,流道无流阻设计,不影响流量,阀杆通过手柄、电动执行机构、气动执行机构旋转带动阀杆及阀芯使试样进入阀芯内,通过旋转阀芯180°实现试样进入取样瓶内,放样的同时,阀芯将取样口关闭,从而做到零泄漏及无压取样,不会因开关阀门对取样瓶造成压力冲击,从而保证操作者的安全。取样瓶可选透明和避光两种,本取样阀广泛应用在制药、化工、食品行业。
标准规格 STANDARD SPECIFICATION
公称通径 Body size | DN15~100 |
公称压力 Body ratings |
PN0.6~4.0Mpa ANSI Class 150,300 JIS 10K,30K |
取样量 Sampling quantity | 20ml、30ml、40ml、80ML、100ML |
取样容量 Sampling capacity | 80~1000ml |
安装方式 Installation mode |
水平、Horizontal 垂直(订做)Vertical (customized) |
尺寸标准 Dimension standard |
国标、美标、日标 GB, American standard, Japanese standard |
阀体材质 Body material |
不锈钢 Stainless steel(304, 304L, 316, 316L), 不锈钢衬氟Stainless steel lined with fluorine(304+F46,306L+F46) 钛、Ti |
阀座材质 Seat material |
聚四氟乙烯(F)、对位聚苯(PPL) PTFE, PPL |
控制方式 Control |
手动、气动、电动 Switch type, Adjust type |
电动执行器形式 Electric actuator form |
普通型、防爆型、智能一体化 Standard type, Explosion-proof type, Intelligent integration |
电源电压 Power supply voltage |
24V/110V /220V/380V交流电源或 24V/110V 直流电源 24V/110V/220V/380V AC or 24V/110V DC |
设计依据 Design Basis | GB 标准 Standard |
设计标准 Design standard | GB/12224-2005 ANSI B16.34 |
连接方式 Connection mode |
内螺纹、外螺纹、焊接、法兰、卡箍 Internal thread, external thread, welding,flange, clamp |
试验和检验 Test&inspection |
GB/T13927-2008 |
Note: The structural length and connection size of series sampling valve can be designed and manufactured according to user requirements.
